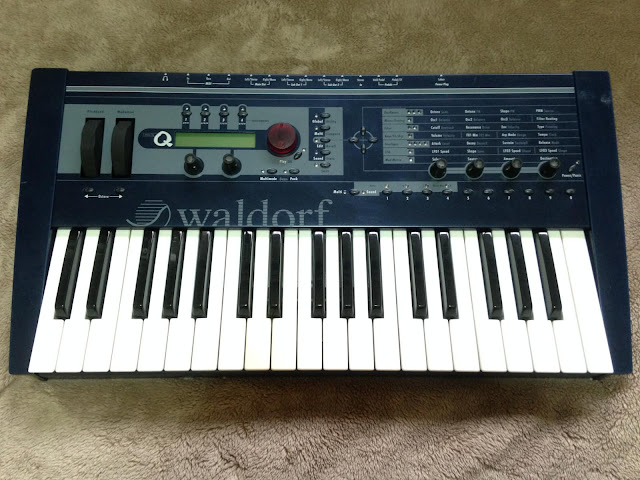

"A compact synthesizer with huge power in an all blue metal case. It has first-class wavetable sounds, a powerful arpeggiator and a clever Drum Map. It even has a CV/pedal input to drive it with vintage/modular equipment and also with pedals, unlike the rack version.
2 scuffs on the metal body and 2 keys are slightly yellowed as seen in the photos, otherwise in excellent condition.
Fully functional with latest OS. A rare beast.
Oscillators - 5 oscillators per voice (Pulse with Pulse Width Modulation, Sawtooth, Triangle, Sine, 2 wavetables with 128 waves each and sub-oscillator per alt-wave); Noise generator
Memory - 300 single programs, 100 multi programs, 20 drum-maps
Filter - 2 Filters (including FM and distortion): Low Pass (12dB/24dB), Band Pass (12dB/24dB), High Pass (12dB/24dB), Notch (12dB/24dB), Comb Filter (positive/negative feedback)
VCA - 4 envelopes, enhanced ADSR configuration with loop and one shot function, bipolar; different trigger modes for each envelope, poly, mono, dual, unison, manual trigger etc.
Modulation - 3 LFOs up to audio range; Modulation Matrix with 16 slots, freely routable, pre-routed modulation destinations, sources selectable
Effects - 2 effects per program, up to 5 effects in Multimode (Effects: Chorus, Flanger, Phaser, Distortion, Delay, 5 FX, Vocoder)
Keyboard - 37 keys (Keyboard model)
Arpeg/Seq - Arpeggiator with 16 preset plus 1 user pattern, including accents, timing information, swing, glide, chords and more
Control - MIDI In/Out/Thru (16 part multi-timbral)"
