Moog Mother-32 & Custom DIY Synth

Note: Auction links are affiliate links for which the site may be compensated.

via this auction

Check out the video here.

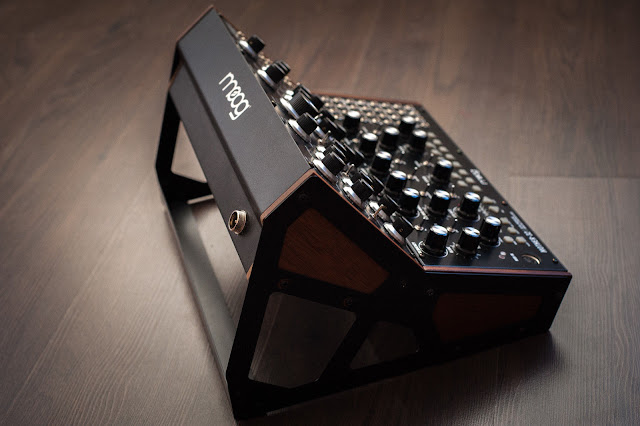

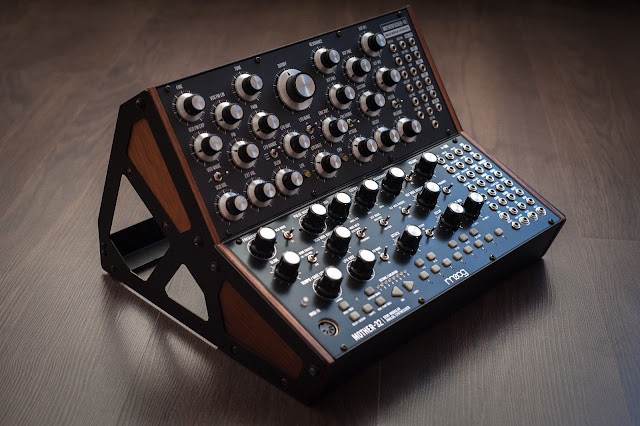

"Moog Mother-32 in two tier stand with custom DIY synth on top.

The DIY synth is modular based on Doepfer DIY Synth board.

* VCO:
- Pulse/Saw switch
- Pulse Width Modulation
- Pulse width
- Frequency and Fine tune
- Linear Frequency Moduation
- Exponential FM with ammount
- Sync

* VCF:
- Switch for Lowpass, Bandpass and Highpass
- 2x audio inputs with ammount
- 2x FM inputs with ammount

* ADSR:
- Switch for fast and slow speed
- Modulation ammount
- Attack, Decay, Sustain & Release
- LED Indicator

* LFO:
- 3x speeds with switch(going in audio rates)
- Square/Triangle waveform switch
- Speed
- Modulation ammount
- LED Indicator

* Slew

* Inverter

* External In witch is mixed with the oscillator out(VCO+EXT)


19 Patch points
-------------------------

INS:
- VCO CV
- VCO PW
- VCO SYNC
- VCO EXP(FM)
- VCO LIN(FM)
- VCF FM 1
- VCF FM 2
- VCF IN 1
- VCF IN 2
- ENV
- INVERT
- SLEW
- EXT IN

OUTS:
- VCO + EXT(IN)
- VCF
- ENV
- LFO
- INVERT
- SLEW

---------------------------------------------------------------------------
*** Please note that the DIY synth uses 220v adapter ***
---------------------------------------------------------------------------"
