MATRIXSYNTH: Cyclone Analogic Bass Bot TT-303 Hardware TB-303 Clone Released

Tuesday, November 27, 2012

Cyclone Analogic Bass Bot TT-303 Hardware TB-303 Clone Released

Update 11/28: Update on the price:

UK: £449.00 + VAT
EU: €549.00 + VAT
US: $699.99 + VAT

Update: additional pics & PDF via Lorne/kidtronic via Rhythm Active.

Remember the Bass Bot TT-303 demo videos posted here back on October 18?   Well, it is currently available as of today, and it is the first product from a new company named Cyclone Analogic based in Hong Kong (possible sites not yet live: http://www.cyclone-analogic.com | http://www.tt-303.com).  You will find full details on the TT-303 further below.

Before we get to that, Robin Whittle, who brought us the Devilfish Mods for the original TB-303, will be performing them for the TT-303 as well. You can find details on his page here.

Lorne aka kidtronic wrote in to let us know Rhythm Active in Australia, one of our sponsors, currently has the TT-303 available. I also hear Syntaur in the US has them for $649.95 $699.95 plus $14.95 shipping to the lower 48.  Syntaur adds the following details: "There is a nicely-done printed manual - on real paper, with ink! Just like back in the analog days of yore... Also a power adapter, and a MIDI break-out cable. (The TT-303 has a single 8-pin MIDI jack. A standard 5-pin cable can be used for MIDI In only, and the break-out cable - 8-pin jack to two 5-pin cables - can be used for MIDI In and Out.)" Update 11/28: Modular Square in France (one of our sponsors) will have them in stock soon (via Twitter).

The following details are via Superior Sound London, who currently shows them as being sold out in the UK:

"The Bass Bot TT 303 electronic bass synth features a selectable monophonic analog VCO processed through a 4 pole analog cascading filter. It uses 21st-century transistor technology to synthesize tones from super-crisp self-resonating leads to squelchy rhythms and deep subharmonic bass grooves.

Creating music as simple or complex as you want with the Bass Bot is a breeze. Its ground-breaking InstaDJ OS is an artificially intelligent sequencer and can be programmed in two methods: by a human user or by the computer-controlled Bass Bot.

Humans may program musical patterns manually using traditional step entry with control over pitch, time, length and special characteristics such as octave transpose, accent and slide for each note.

Alternatively let the Bot generate a pattern and use it immediately, tweak it to taste, or mutate it into a new pattern altogether at the touch of a button. The Bass Bot TT 303 includes seven different ‘personalities’ each of which generates its own special style of musical patterns. No two Bots will produce the same patterns. Each is as individual as the user, though the basic personalities are the same for every Bass Bot.

The Bass Bot TT 303 features seven unique preset personality programs, capable to generate up to 224 computer generated presets by the Bass Bot ™.

An additional 224 Editable Patterns can compose up to 7 songs of up to 127 bars. All information is saved to onboard flash (permanent) memory and transferable directly to other Bass Bots via 8 Pin DIN cable (cloning) or to PC / MAC (backup) for storage with a downloadable transfer application available on our website. Other platforms to be supported soon.

FEATURES
• Monophonic selectable (saw, square) VCO with 24db 4 pole analogue filter.
• User or Bot generated programmable patterns with InstaDJ ™ sequencer.
• MIDI IN by default / MIDI IN and OUT (with provided splitter cable).
• 13 Colour LED display with user definable console and individual pattern labelling.
• Auto Tune and VCO calibration on demand.
• Arpeggiator.
• Generate new patterns using one of seven unique personality algorithms.
• Mutate Patterns to create infinitely complex pattern structure and variation.
• Live Pitch Transpose (+/- 1/2 step pitch), Live Accent (velocity) & Live Slide (portamento).
• Pattern Rotation (left or right) one step in time.
• Complex file manipulation of pattern banks using Copy & Paste.
• Merge up to 8 patterns to one pattern (maximum 64 steps).
• Portable with battery or ac power options at only 730 g (1.6 lbs).

Warranty: One (1) year warranty from purchase. Online registration required.
Included: Operation Manual / 100-240v adapter 9 volts, 300ma / 8 PIN splitter cable to 5 PIN MIDI IN and 5 PIN MIDI OUT.

SPECIFICATIONS
Selectable Waveform Switch (saw or pulse)
VCO Tune
Cutoff Frequency
Resonance
Envelope Modulation
Decay
Accent
Tempo, Track/Preset and Mode Switch, Power/Volume
Instrument Mix-In Jack to mix audio source with output
MIDI IN (MIDI OUT with included 8 PIN DIN cable)
CV / GATE OUT Jacks (1 volt / octave)
Stereo Headphone Jack
Mono Output Jack
Power In Jack
Physical Attributes:
Power: 100-240v adapter (included) 9v or 6v use with 4 x "C" UM-2 batteries (not included). / Case Material: Plastic ABS.
Weight: 730g / Dimensions: 300(W) x 146(D) x 55(H)mm"

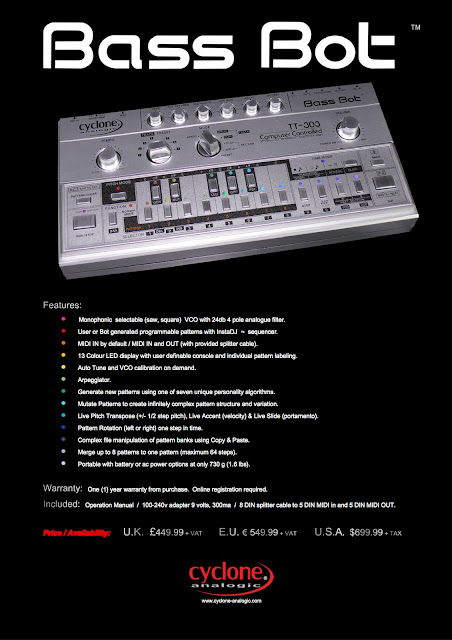

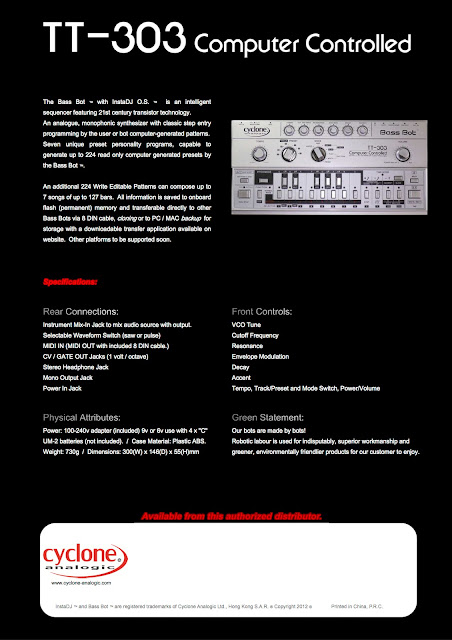

You can find a slightly different write-up doc and the PDF Brochure captured above as images here.

3 comments:

  1. Why is there no din sync?

    ReplyDelete
  2. Is Cyclone Analogic gone already? Their site is gone.

    ReplyDelete
  3. Their website actually hasn't been set up yet. They are still around.

    ReplyDelete
