MATRIXSYNTH reader ab sent in some tips for the UltraNova's modulation matrix complete with examples & pics, for my my official review here. You'll find them in the comments section of the post and referenced at the start of the Modulation Matrix section of the review. The following are the pics with examples backed up. Refer to the comments in the review for context.

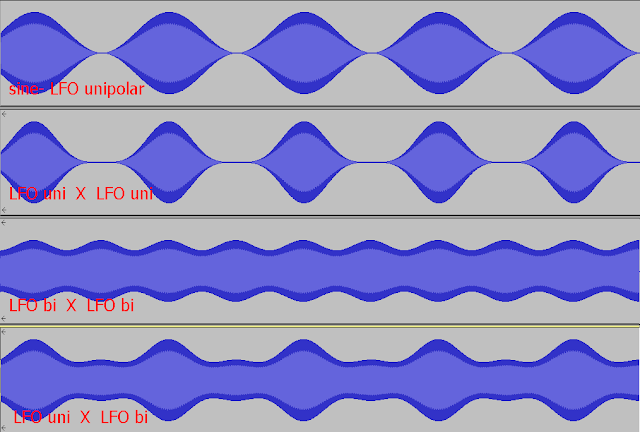

sine LFO
a- LFO unipolar x Direct
b- LFO unipolar x LFO unipolar
c- LFO bipolar x LFO bipolar
d- LFO unipolar x LFO bipolar

triangle LFO
a- LFO unipolar x Direct
b- LFO unipolar x LFO unipolar
c- LFO bipolar x LFO bipolar
d- LFO unipolar x LFO bipolar

saw LFO
a- LFO unipolar x Direct
b- LFO unipolar x LFO unipolar
c- LFO bipolar x LFO bipolar
d- LFO unipolar x LFO bipolar

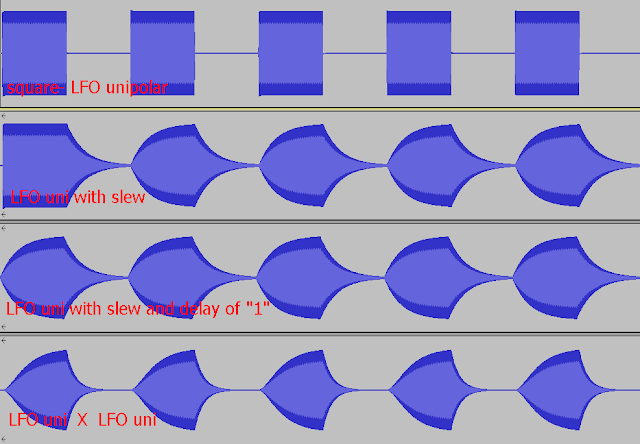

square LFO unipolar
a- LFO unipolar x Direct
b- LFO unipolar with 50% slew - note the first waveform
c- LFO unipolar with 50% slew and a delay of "1" - corrected first wave
d- LFO unipolar x LFO unipolar

square LFO unipolar

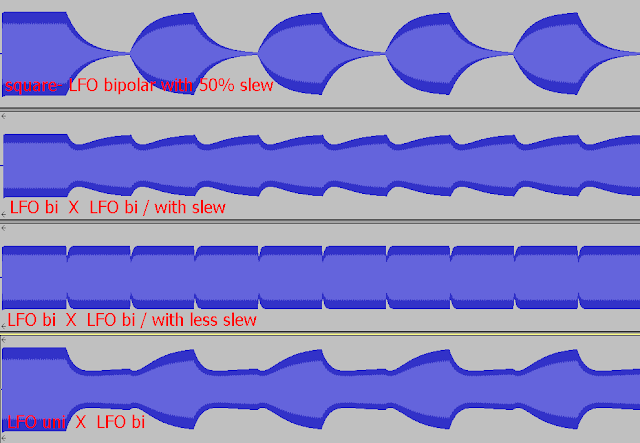

a- LFO bipolar with 50% slew
b- LFO bipolar x LFO bipolar , 50% slew
c- LFO bipolar x LFO bipolar , 25% slew
d- LFO unipolar x LFO bipolar , 50% slew

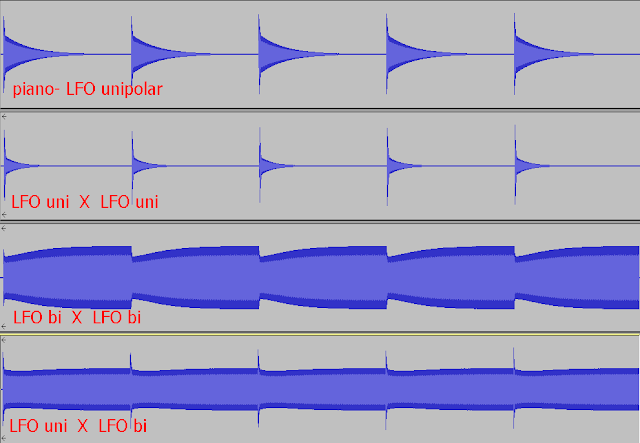

piano LFO
a- LFO unipolar x Direct
b- LFO unipolar x LFO unipolar
c- LFO bipolar x LFO bipolar
d- LFO unipolar x LFO bipolar

sine LFO selfmodulating
a- LFO1 unmodified
b- LFO1 uni modulates LFO1-rate with depth "+8"
b- LFO1 uni modulates LFO1-rate with depth "+16"
b- LFO1 uni modulates LFO1-rate with depth "+24"

sine LFO selfmodulating
a- LFO1 unmodified
b- LFO1 uni modulates LFO1-rate with depth "+16"
c- LFO1 uni modulates LFO1-rate with depth "-8"
d- LFO1 bipolar modulates LFO1-rate with depth "+16"

square LFO selfmodulating
a- LFO1 unmodified
b- LFO1 uni modulates LFO1-rate with depth "+16"
c- LFO1 uni modulates LFO1-rate with depth "+32"
d- LFO1 uni modulates LFO1-rate with depth "-8" - a pulse width-modulated square LFO !

Sample & Hold LFO selfmodulating
a- LFO1 unmodified
b- LFO1 uni modulates LFO1-rate with depth "+16"
c- LFO1 bipolar modulates LFO1-rate with depth "+24" - Highpass
d- LFO1 bipolar modulates LFO1-rate with depth "-24" - Lowpass
