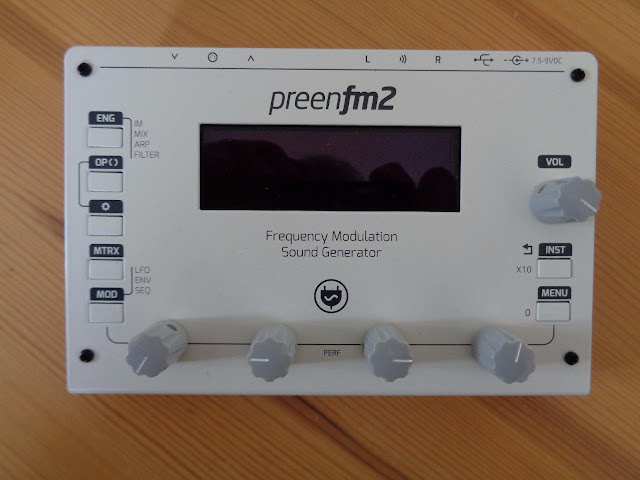

"Pristine PREENFM2 FM synth module. It has 4 independent instruments and up to 14 notes polyphony. The sound quality is awesome. It can load DX7 patches into its huge patch storage memory. This is almost certainly the lowest cost option for getting hold of FM sounds in a module that I believe significantly surpasses the DX7.

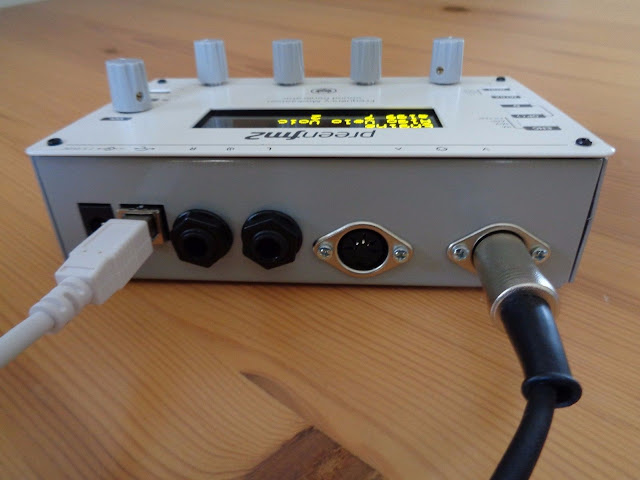

Unit has been configured to be powered from a readily available USB power supply (Type B connector).
Many more details can be seen at the supplier's webpage: http://ixox.fr/preenfm2/
The specs for this unit are below:-
4 independent instruments. Each of them has:Powerful arpeggiator (Mutable-Instruments opensource algorithm).
1 effect Slot (LP, HP, Bass boost, Band Pass, crusher)1 gate effect
4 rapid access performance parameters
The 4 instruments can be saved all at the same time in combo presets.
Each instrument has its own modifiable midi channel. They can share the same for FAT quadruple timbres notes.
Modifiable number of allocated voices… Between 1 and 14.
28 FM algorithms from 3 to 6 operators
Up to 14 voices of polyphony (8 if you use 6 op algorithms). Each voices has:
7 low frequency modulators (3 LFOs, 2 enveloppes, 2 step sequencers).
12 rows matrix : 16 sources, 32 destination (LP, HP, gate, stereo, MI, attack…)
Arpeggiator, LFOs and step sequencers synchronizable on external midi clock or internal clock.
Operator features:
7 builtin waveforms + 6 user waveforms read from the usb drive.
Stereo panning (at the carrier operator level)
8 envelope parameters per operator (DX7 like)
Direct Scala scale file loading for microtonality. Up to 128 Scala scales selectable from the preenfm2.
Modular Randomizer
USB all the way
Midi over USB
USB drive: huge preset banks: 64*128 presets, 8*128 combos, 256*32 DX7 presets.
The USB drive holds your preset banks, you scala scale files, your user waveform files.
Easy firmware upload and flash.
USB powered
Comprehensive user interface and associated to a 4×20 characters display for easy preset edition
Small, portable and easy to build (no SMD)
Mac/Linux/Windows open-source preset Editor"
