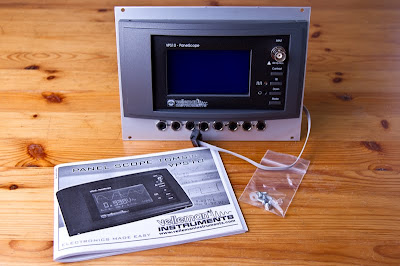

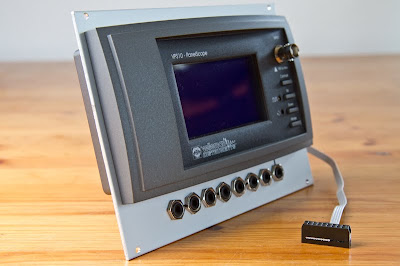

Doepfer A-197-2 / Vellemann VPS10 - LCD Oscilloscope

via this auction

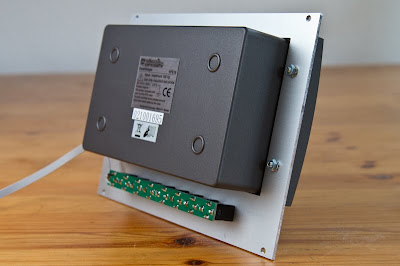

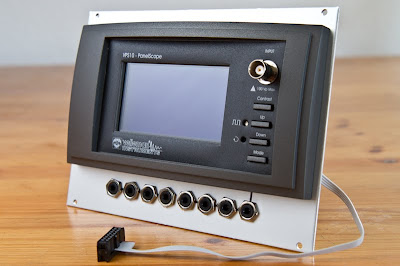

"No special measuring cable (BNC - 3.5 mm jack) is necessary as the four right sockets are internally connected to the VPS BNC input (the BNC input is connected to the right four sockets of the A-180 board).
The four left sockets built a second multiple without connection to the VPS10 (same as A-180).

Features:
high-contrast backlight LCD
full auto set up
recorder roll mode
user-friendly set-up menu
measurements: rms, dB(rel), dBV, dBm
Direct Audio power measurements
x1 and x10 probe calculation
6 display modes

Specifications:
input impedance: 1Mohm / 30pF
connection of internal or external signal
bandwidth: 2MHz
sampling: 10MS/s
128 x 64 pixels LCD white backlight
vertical resolution: 8 bit
max. sensitivity: 0.1mV
DVM readout
AC or DC input coupling
Width: 34HP (172.4 mm)
Current: 300 mA"
