MATRIXSYNTH: Flame Clockwork Midi CV Clock Divider

Saturday, September 06, 2014

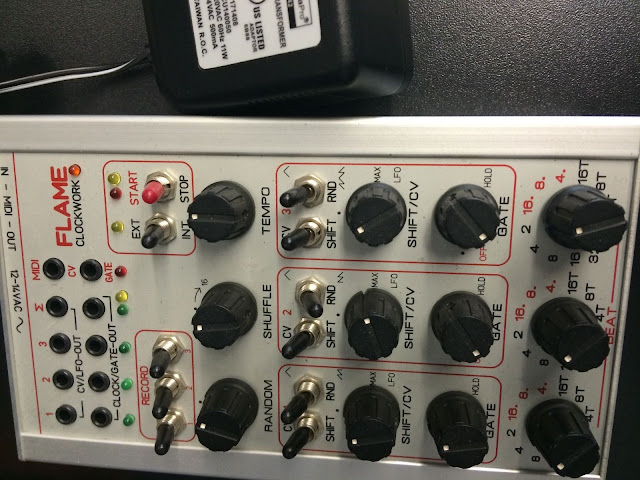

Flame Clockwork Midi CV Clock Divider

via this auction

" SHIFT CLOCK / CV - puls generator
(for Moogerfoogers, Modularsystems, Analogfilters, Analogstepsequencers etc.)

- Individual generator for experimental grooves
- Easy soundmachine on your analog filter
- Create new patterns with analog stepsequencer
- Tool for modularsystems and analogsynth
Technical details

- Analog Clock + CV-outputs
- MIDI-Sync (intern/extern MIDI-Clock)
- 3 Tracks with Beat-, Clock-Shift/CV and Gatetime-control
- Beats included triplet and punctuated notes
- Clock shift forward and backward
- LFO (synchronized), 4 Waveforms: saw, up, down, up-saw-down
- Shuffle Control (8 or 16th parts)
- Independent MIDI(in) to CV/Gate(out)
- Complex Random Functions
- Record Functions
- MIDI-Controller
- Outputs 3,5mm mono jacks: Gate or CV + Sum, Clock/Gate, Midi-CV/Gate
- Output 3,5mm stereo jack: Sum Clock + Sum Gate
- CV voltage: 0..2V
- Trigger voltage: 0..5V
- MIDI in + out
- 12..14VAC input
- Size: 165x100x42mm"
