LepLoop Analog Drum Synthesizer V2

via this auction

"LepLoop V2 is part synth, part drum machine, & part multi-track sequencer.

Lep loop V2
1 oscillator (VCO1) triangular/square wave
1 oscillator (VCO2) sawtooth wave with ring modulator and FM modulation
White noise generator
24 dB/OCT Low pass filter
Kick drum with distorsion and trigger mixer
2 VCA's2 AR Envelope generators
1 LFO16 Capacitors analog sequencer PWM programmable
4 Track digital rhythm sequencer
64 step each track
4 Channel audio mixer
Midi input(clock and notes)

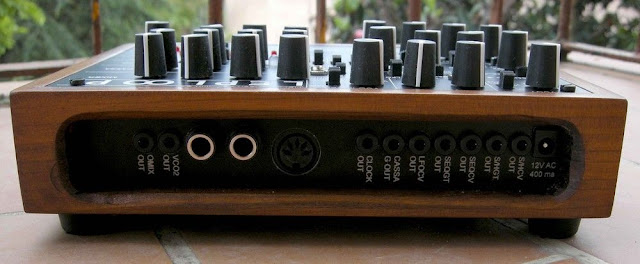

5 CV out: S\H, SEQ, LFO, ENV1, ENV2
3 gate out: S\H, SEQ, CASSA3
CV in: VCO1, VCO2, VCF cutoff
1 audio in (VCF)
4 audio out: MIXER, CASSA, VCO2, VCO mix1 clock
output: clock 24, MIDI start\stop
EEPROM memory 16 banks 10 pattern each
