MATRIXSYNTH: Drumfire DF500 Five Channel Synthesizer Mixer w/ Original Box

Thursday, January 23, 2020

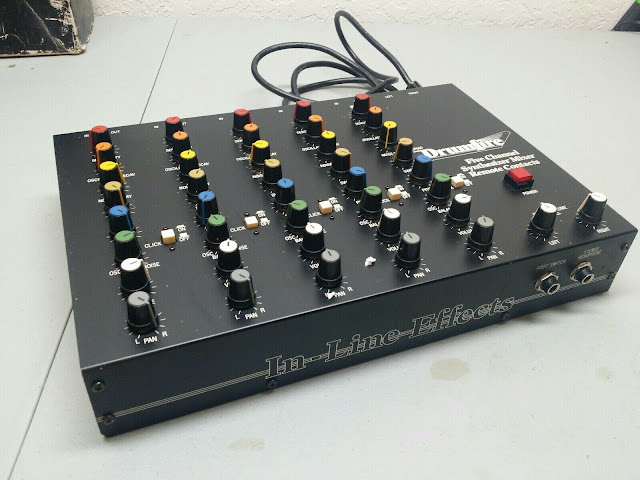

Drumfire DF500 Five Channel Synthesizer Mixer w/ Original Box

via this auction

"Drumfire DF500 Five Channel Synthesizer Mixer Remote Contacts 80's?. This mixer is in good condition. It has been fully tested and works like it should. It comes with the 5 remote contacts. The wires have some residue on them from the styrofoam sticking to them. The box is in very rough condition. Look at all pictures to judge the condition.

Has all 5 original piezoelectric pick-up cables.

The DRUMFIRE 500 has 5 separate channels to let you set 5 different electronic drum voices such as synth sounds, hand claps, super kick, gunfire and more.
The unit also has stereo headphone outs, foot switch in and Stereo outs with individual level control."

Each channel has 8 parameter controls.

Sensitivity: Controls input sensitivity.

Oscillator Decay: Controls decay time of oscillator sound.

Noise Decay: Controls decay time of noise sound.

Sweep: Modifies oscillator frequency.

Pitch: Changes oscillator pitch.

Balance: Controls balance between oscillator and noise level.

Volume: Controls output volume.

Pan: A right and left balance control. Also allows dual output on right and left jacks.

Click: Mixes the triggers click with the oscillator.

Each channel has an input jack for trigger, and an output jack for individual output to a P.A., mixer or amplifier.

There is also a Master Volume Level Control, a Left Channel Output Level Control and a Right Channel Output Control."
