Saturday, May 23, 2026
ESP32-S3 Synthesizer development continued! Routing matrix fitted.
video upload by Bad Dog Designs

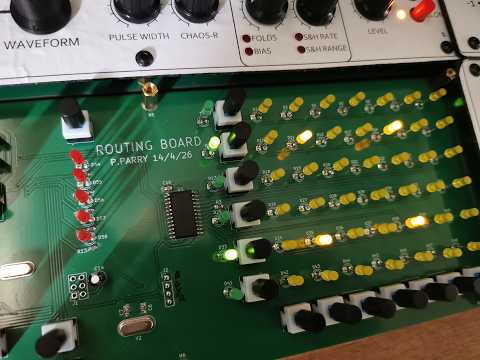

"Carrying on from the initial clip, the Synth has now got its routing matrix on the CAN bus, so I can assign various modulation sources ( LFO1 / LFO2 / ADSR / Velocity / Mod wheel ) to any global destination ( Resonance / Frequency / Level / LFO2 / Unison Detune ) or any of the parameters for any of the oscillators - up to a maximum of 12 separate routes.
It's also Stereo now, so each oscillator has Pan control as a new addition.
All the audio in the clip straight out the back of the DAC on the ESP32 :)
Next step, I've added an SD card to the ESP32 so there will be patch storage, and also the ability to change wavetables, as it currently just uses a single Sinewave generated at startup.
All open source, files on Github https://github.com/Bad-Dog-Designs/ES..."
