Monday, September 28, 2026
Open Source Programmable Guitar Pedal using STM32
video upload by GuitarML
"Project Link: https://github.com/GuitarML/GuitarPed...

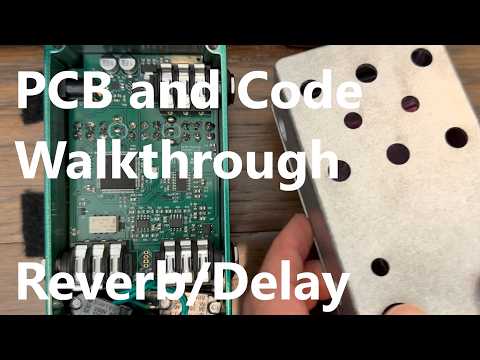

Walkthough of my custom STM32 based digital guitar pedal. I give an overview of the features, and then dive into the project hardware and software. I also show a demo of the included Reverb/Delay.
00:00 - Pedal Features
4:25 - Open Source Project Overview
5:58 - KiCad Schematic
10:35 - KiCad PCB layout
16:55 - STM32CubeIDE and code
23:05 - Reverb/Delay Effect Demo
Patreon:
/ guitarml"
