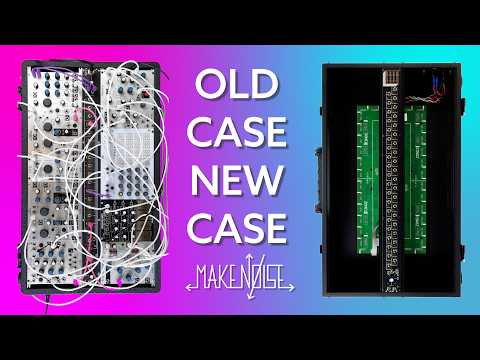

"A brand new edition of the 7U Case has arrived! So let's make a patch in a Shared System in the 2013 wooden Enclave 7U that is still going strong to this day!

There is at least one error in the voiceover for this video: can you catch it?

Our 208hp 7U 4 Zone CV Bus Case arrives ready to put to use with your modules, patch cables and inspiration. The powder coated metal construction offers excellent mechanical durability. The mounting rails have been updated to black anodized tapped strip, replacing the sliding nut design of previous versions of the case. The lid is removable and can be closed with the system fully patched. The sleek matte black finish was selected to match our line of Black & Gold modules, and it looks great with just about any module installed. This finish will wear nicely showing the story of your modular synth's travels over the years.

The Make Noise 4 Zone Power system is a new approach to accommodating the ever growing universe of Eurorack modules.The multi-zone power solution is like having multiple independent power supplies in a single case. This allows for isolating noisy modules from noise sensitive modules. Each Zone features isolated +12 VDC and -12VDC supplies and a dedicated ground return path. Included are 31 power shrouded connectors to help prevent incorrect installation. The total available power available is +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A.

The CV Bus is a more functional approach to the “multiple” utility of the modular synthesizer. The CV Big Bus is an evolution of the original CV Bus design from 2013 for Alessandro Cortini's personal Make Noise system. In an effort to accommodate the increased modulation density of the New Universal Synthesizer System, the CV Big Bus doubles the channel count from 4 to 8. These 8 channels are distributed across the center of the system allowing for quick, clean and intuitive patching. The numerical indicators are illuminated providing visual indication of channel number, level, rate and polarity for up to 8 signals to be shared throughout a patch. This distribution method is unlike the typical multiple since the control signals will appear beneath their potential destinations resulting in less cable mess. The color coding and visual indication makes navigating complex patches easier and more intuitive. Typically, the CV Bus would be used to share the most important control signals in a patch such as your clock, modulation, sequence, and audio signals - any type of signal the system creates may be shared!

A high quality Stereo Line Driver converts modular synthesizer signal levels to the commonly used Line Level. There are mini-jack inputs for Left or Mono, and Right for Stereo, a single master volume control, as well as a stereo line output pair. The left output doubles as a TRS ⅛” headphone output. These outputs are capable of driving a long cable out to a PA System or a set of Headphones. They are AC coupled with a built-in limiting circuit (with visual indication) that prevents damage to ears and PA system when the patching gets experimental.

4 ZONE TECHNICAL SPECS

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Outer Dimensions:
22.25" x 14" x 7.25" w/ lid
Max Module Depth: 2.5"
Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
Power: Ships with 2 x 2 Zone Power Bus Boards installed for a total of +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A shared across 4 isolated zones.
Connectors: 31
New CV Big Bus with 8 mults and a high quality stereo line driver converts powerful modular synthesizer signal levels to the commonly used Line Level
Black anodized Threaded Strips w/ Black screws
AC Adapter
Price: $949
Release Date: Aug. 2026"
