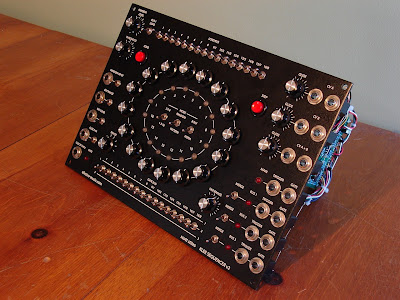

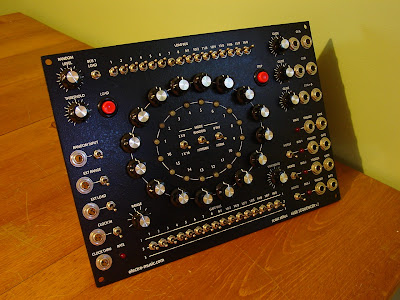

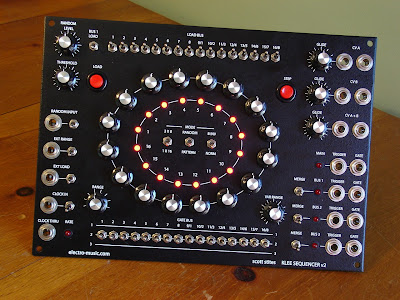

Electro-Music Klee Analog Sequencer

via this auction

"Designed by Scott Stites and Assoc.

Assembled by Free State FX

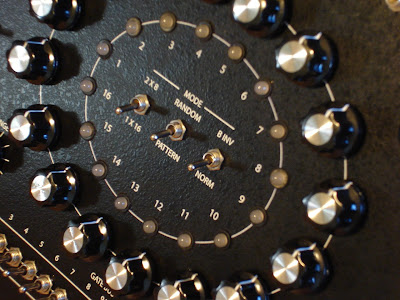

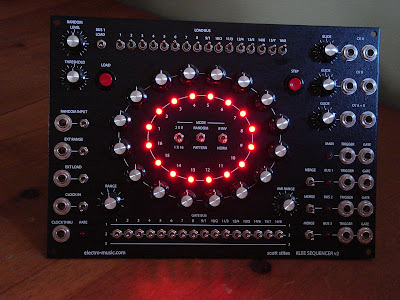

Custom LED Colors: This Klee been modified with Bi-Color LEDs so Stage LEDs 9-6 are green when the sequencer is in 2X8 mode. Blue LEDs on Random and Bus 2 Status. Yellow LEDs on Rate and Bus 1 Status. Green LED on Bus 3 Status. Red LED on Main Bus Status.
Logical CV Output Routing: Stage 1-8 CV Output on Output A (stock assembly routes it to Output B). Stage 9-16 CV Output on Output B (stock assembly routes it to Output A).

For those that don't know, the Klee is the most feature packed, crazy, beautifully insane sequencer out there. Every option is implemented in this layout. Once you get one the Klee in your rack, you'll wonder how you managed without it. It can function like any other 16 step sequencer out there, or it can function like it has a brain of it's own. Easily programmed with your own ideas, or flip the Random Switch and find out what "it" has in mind. An endless source of inspiration.

This is one BIG build. Save yourself the time, hassle, and inevitable troubleshooting by purchasing this Klee fully and professionally assembled by Free State FX.

The Klee, pronounced Clay, is a shift register based sequencer. What makes the Klee different from most sequencers is that more than one Stage/Step can be active at any given time. Most sequencers have one active Stage, the CV for that Stage is programmed via the pot, and the CV is then sent to the CV Out. With the Klee, one or more stages can be active at one time, the CV programmed by the active Stages is added together, and is then sent to the CV Out. This function just

I could not possibly list all the functions of the Klee here. More inormation about how to use the Klee can be found here:

Know the Klee

Klee Operating Tips

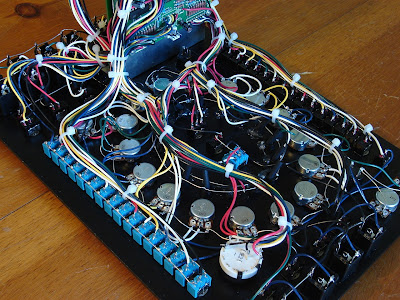

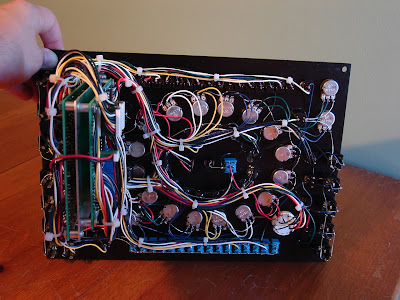

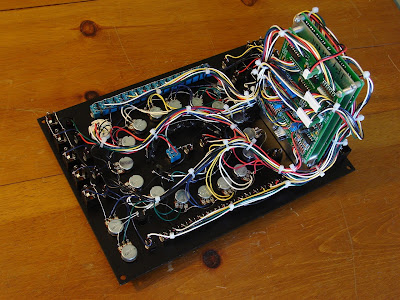

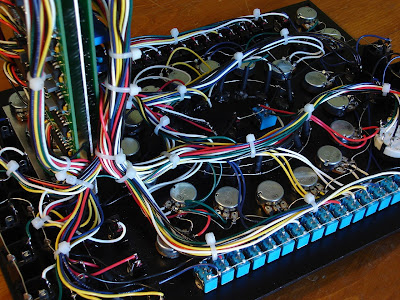

Assembled with:

42 Toggle Switches with Black Rubber Switch Covers
22 Alpha Pots
23 Mini Alco Clone Knobs
Rotary Switch
21 LEDs with Bi-Color LED Mod
2 Large Red Pushbutton Switches
Large Bridechamber Panel - 7 units wide
19 Switchcraft Jacks
Polyester Film Capacitors
Metal Film Resistors

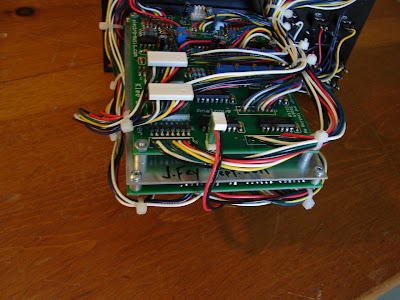

Double Plated PCBs with Soldermask
MOTM Power Connector
Runs on +/- 15 Volts

THIS MODULE IS FOR EXPERIENCED SYNTHESIZER ENTHUSIASTS ONLY! If you don't know how to use this module, please don't bid..."
