AVP Synth ADS-7

Note: Auction links are affiliate links for which the site may be compensated.

via this auction

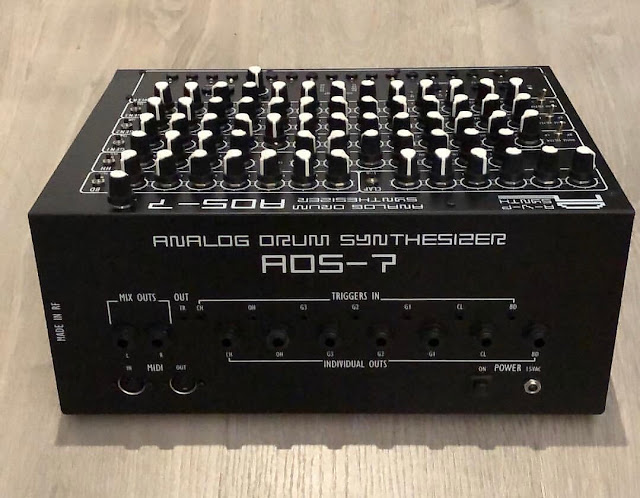

"ADS-7 — is an analog drum synthesizer inspired by the drum machines/synthesizers of the 70s-80s with a built-in 32-step sequencer and MIDI control. It has 65 controls, 4 switches and 28 buttons with which you can have a wide control over the sound parameters, sequencer and MIDI. It has individual audio outputs and individual trigger inputs for each of the seven sounds.


Fully analog, discreet components;
7 individual sound channels: BD, Clap, OH/CH (choking on/off function), 3 separate Generators (GEN) with Band-pass and Low-pass filter options;
65 knobs/controls for different sound shaping options: from standard noise to metallic tones;
16/32 step analog sequencer;
Ability to clock external gear with the sequencer;
Up to 32 steps preset loading/saving slots;
MIDI In/MIDI Out;
3.5 mm individual triggers;
Stereo/individual 6.3 mm outputs for each sound plus 1 trigger out;
Steel casing;
Dimensions: L330xW250xH140 mm;
Weight: 3.5 kg (without power supply);
15 VAC 220v power supply (included)."
