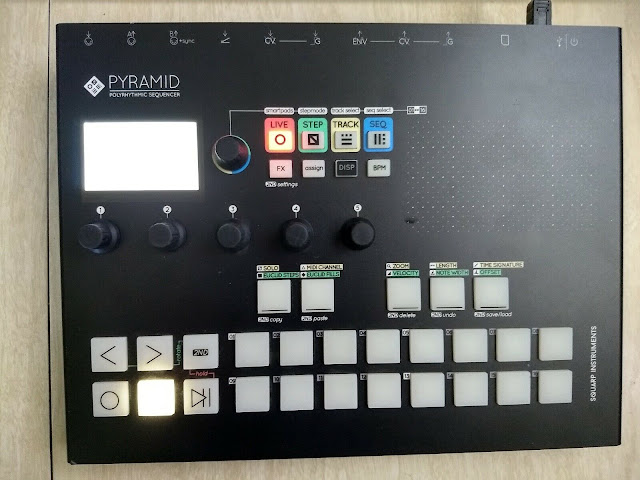

Listing the specs below the image above so they don't wrap oddly.
● Maximum number of tracks played at the same time: 64
● Maximum number of patterns per track: 32
● Maximum number of sequences (group of tracks & patterns): 32
● Maximum number of projects: 256
● Maximum number of events (notes, CC, ...) per project: 10000
● Maximum number of effects per project: 320
● Track length: 1/4 bar (a quarter note) to 384 bars
● Track time signature: 1/1 to 24/16 or 1:1 to 24:16
● Recording resolution: 96ppqn
● Tempo: 10.0 to 999.9 BPM
Tracks
● Maximum number of notes per step (polyphony): unlimited
● Maximum number of CC automation per step: unlimited
● Maximum number of FX automation per step: unlimited
● Maximum number of effects per track: 5
● Maximum number of assignations per track: 131
● Note pitch: C-1 to G9
● Note velocity: 0 to 127
● Note width: 1/96th to 384 bars
● Note Offset: 0% to 99%
● Zoom: /4 (1 step = 4 quarter notes) to x16 (1 step = 1/64th note)
● Automation recording, drawing, importing, exporting: CC0 to CC119, pitch, mono pressure, program change, effects parameters, BPM
Inputs
● MIDI in (to control Pyramid with a MIDI controller, multitrack or omni input)
● Plug and play mini USB MIDI in
● 4x CV in (jack 3.5mm) [0 to 5V]
● 2x PEDAL in (stereo jack 6.35)
Outputs
● MIDI out A (up to 16 channels = 16 instruments) (turbo midi ready)
● MIDI out B (up to 16 channels = 16 instruments)
● Plug and play mini USB MIDI out (up to 16 channels = 16 instruments)
● DYN sync out (available on the MIDI out B)
● CV out (jack 3.5mm) [0 to 5V]
● ENV out (secondary CV, e.g. to sequence filters) (jack 3.5mm) [0 to 5V]
● GATE out (jack 3.5mm) [0 to 5V]
User interface
● 35 backlit silicon button pads
● Menu clickable encoder
● 5 assignable clickable encoders
● Assignable touchpad (105x65mm)
● White backlit high contrast LCD screen (15µm dot gap)
● SD card slot to save your projects and upgrade the OS.
Other
● Power supply: mini USB bus (5V, 500mA) (included)
● Housing: machined aluminium 2mm, dark black
● Size: 206x268x44mm
● Weight: 1.6 kg (3.5 lbs)
● Kensington security lock
