Cwejman S1 Mk2 2004 Battleship Grey Semi Modular Analog Synthesizer, First Batch, S/N 032

Note: Auction links are affiliate links for which the site may be compensated.

via this auction

"If you love analog and haven’t owned a Cwejman, you owe it to yourself to get one! The precision and sound is just unrivaled.

Up for sale is this Cwejman S1 Mk2 in the rare battleship grey color scheme. Its an all analog beast of a synth produced in very limited quantities and very hard to come by.

Here are the specs:
VCOs: Three, with FM and sync.
VCO waveforms: Seven, including three with PWM.
PW range: Five to 95 percent.
Portamento: 1ms to 10 seconds.
Noise generator (with white, red and 'low' outputs).
Ring modulator.
LFO Range: 0.05 to 50Hz.
LFO waveforms: Seven.
Multi-mode filters: Two, with variable CV tracking from 0 to 200 percent.
Filter topoology: Low and high-pass 12, 24, or 36dB-per-octave filters, plus a six, 12, or 18dB-per-octave band-pass filter.
Two filter-input mixers.
One freely patchable mixers.
Envelope generators: Two, with voltage control of all attributes.
Minimum envelope time: 0.5ms.
Maximum envelope time: 20s.
Output amplifier with overdrive, logarithmic and linear EG responses.
Front-panel patch points: 65.
Rear-panel patch points: 14.
MIDI In, Out & Thru.
Patchable MIDI-CV controllers: Four.
Rear-panel analogue interfacing: 1V-per-octave pitch CV, Trigger, S-Trig, and Gate.

This is a unit from the very first run (said to be the most desirable one) with a low serial number - 032.

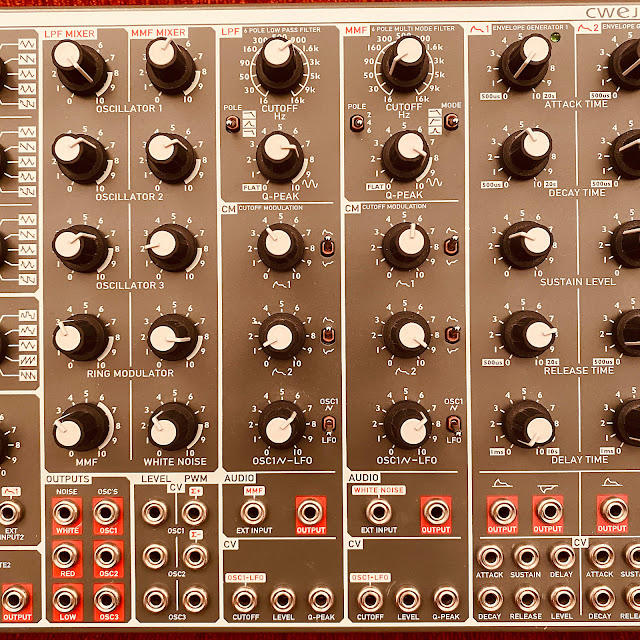

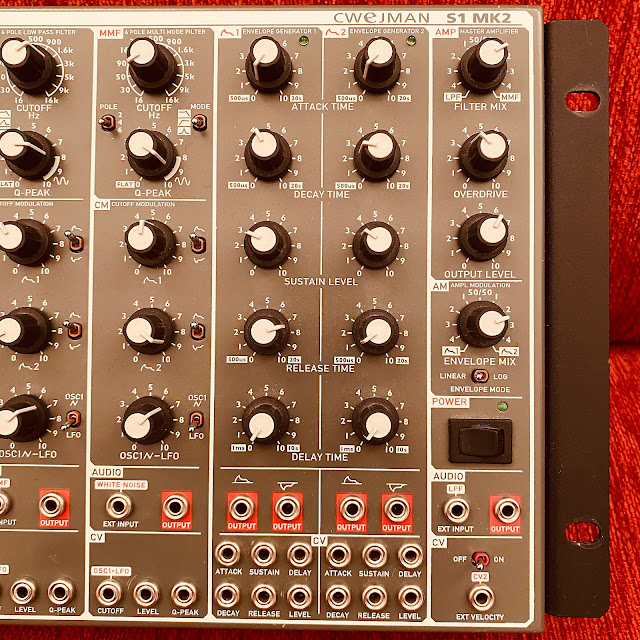

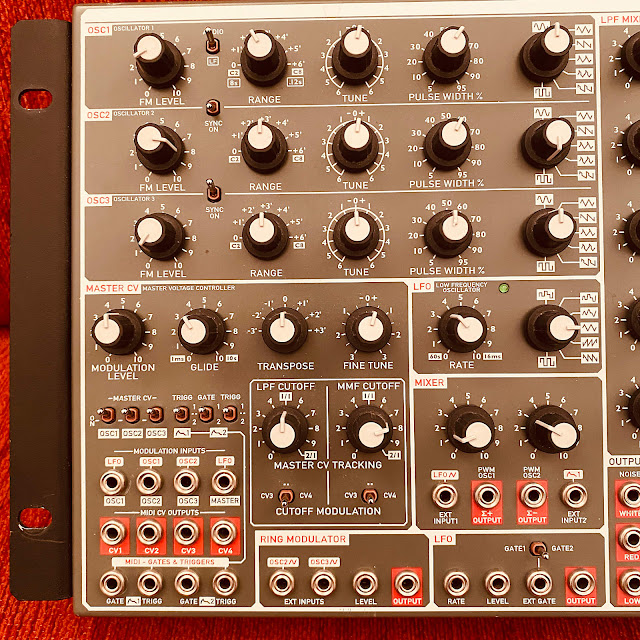

The unit is in excellent condition - everything works perfectly, the panel looks beautiful. There are some minor marks of use as can be seen on the pics, which is to be expected for a unit that has been used for 16 years - there is some minor rack rash on the bottom of the unit, as can be seen in the pictures, but nothing major"
