via this Reverb listing
You cand find a demo of the prototype from 2008 here, and additional posts here.
Google translated from the listing:

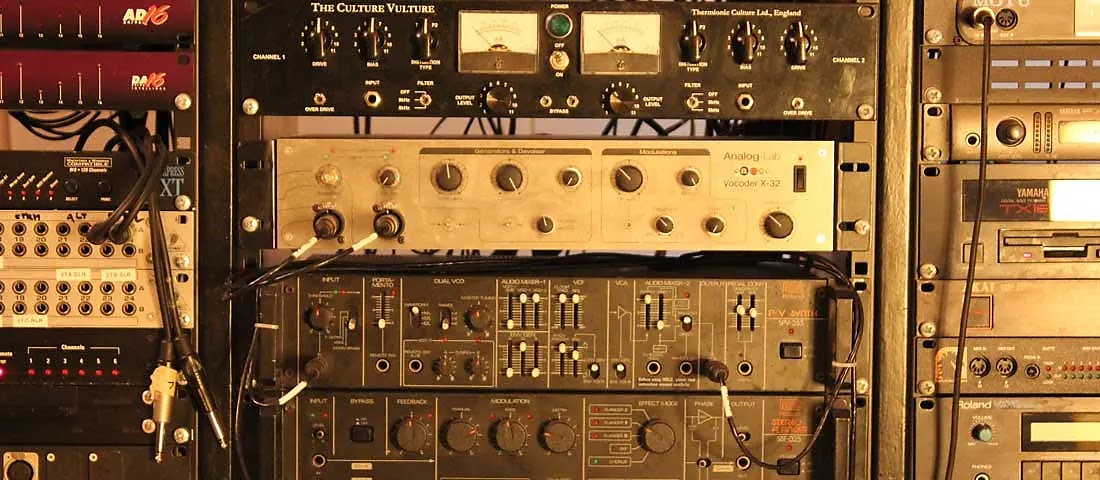

"A rare unit from France!This is an EMS 2000 vocoder.
Made in France, only 100 units were produced.
32 purely analog bands, with a frequency response of 20Hz to 120Hz (low-pass), 120Hz to 9Khz (30 bands), and 9Khz to 20Khz (high-pass). This distribution gives it unparalleled intelligibility. It also results in absolute precision across the entire spectrum, with superb harmonic richness.
The X-32 was designed to accommodate all sound sources, allow for diversified signal routing, and the use of exclusive vocoder functions, making it an incredible Machine
Features:
Analog vocoder with 32 filters and stereo spatialization
Built-in regulated oscillator
3-stage harmonic generator
LFO with progressive waveforms
Triangle-square morphing
Sync trigger
Line/instrument input
Dynamic microphone input with inverter
Devoiser with formant detection
Adjustable white noise addition
Outputs: Mono, Stereo L & R, OSC out, 0-5V drive/CV, noise substitution input, direct source output
Dimensions: 19" rack
Height: 2 units / depth 33 cm
Power supply: 18V - 1500 mA
Weight: 5.5 kg
Worldwide shipping, customs fees are the buyer's responsibility.
