700_funtion_M4L with 700 voice system

video upload by Gm Xe

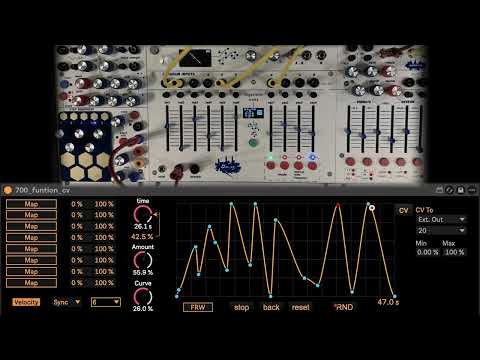

"The 700 Complex Function Generator test features multi-point drawing and a time-scanning system. In this patch, the CV output from the 700 Function plugin is routed into the 700 Voice. This plugin will be available for free download on my website.
#ableton live #max for live #700FMvoice


Paying tribute to the classic Buchla 700, the 700 FM Voice reimagines the iconic voice section's characteristics. We have rebuilt the algorithmic structure and user interface to better suit modular usage. The 700 Voice features a unique sound synthesis approach, incorporating elements of both classic FM and phase synthesis. Although it is a monophonic oscillator, we have endowed it with complex and powerful sound-shaping capabilities, as well as the design space to continue developing new algorithms in the future. The module is available in both standalone and expanded versions.

Four variable waveform oscillators, Each oscillator features four selectable modes, indicated by LED colors: red for mode 1, green for mode 2, blue for mode 3. White for mode4 (independent osc with 1.2v/oct).

A global frequency control.
Six independent index controls, supporting 0-10 V CV modulation.
A/B dual mixed output with CV modulation capability, plus a dedicated output for channel B.
The top left OLED allows mode switching for the oscilloscope via an encoder and provides access to expanded feature options.
The middle OLED displays logic diagrams for twelve algorithms, with buttons for downward selection and a "Res" button to return to the previous level.
Expanded oscillator waveform selection, including sine-saw, sine-square, and PWM square shapes.
Enhanced waveform simulation with jitter modulation.
Independent wave shape modulation for A and B outputs.
Support for expansion modules.
The standalone version allows MIDI CC input control.
Global support for 1.2 V/oct.
Power requirements: ±15V, 12V, 5V, QG, NG.

-700FM VOICE: $1099 USD

-700 Voice Expansion: $529 USD

-700FM VOICE + Expansion: $1528 USD

https://gmxe.org/700fm-voice
