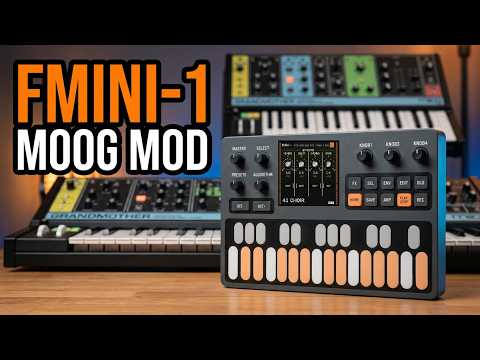

FMini-1 | A MiniMoog for the M-Vave FM-1

FMini-1 | Moog synth inside M-Vave FM-1 (All presets and more, No talking)

video upload by e y l v y

You can find the M-VAVE FM-1 on Amazon.

https://ruppert.github.io/fmini-1/
0:00 - Factory presets 5-50 (Free playing)
8:06 - Factory presets 50 and the rest (Sequencer playing)
11:42 - Sound designing 1
15:52 - Sound designing 2

"A classic, inside the FM-1.
Free firmware. Install straight from the browser and go back to the original whenever you like.

Three oscillators, a ladder filter and plenty of body
Each block of the Minimoog panel has its place on the FM-1's 240 × 240 screen, with four real knobs to play it for real.

Oscillator bank
Three oscillators with ranges from LO to 2', a waveform each, independent detune on oscillators 2 and 3 and a touch of pitch drift, like analog VCOs.

Ladder filter
A four-pole ladder, 24 dB/octave, with saturation in every stage and the feedback lag of the Minimoog circuit. From emphasis 8 up it self-oscillates as a pure sine that follows the keyboard at 1 V/octave. Cutoff reads -5 to +5, as on the panel.

Contours
Two contours (filter and loudness) with attack, decay and sustain. The attack is exponential, like the original circuit. Glide, LFO and modulation complete the section.

100 presets
Ten groups of ten: a showcase of styles, hard leads, soft leads, basses, pads and strings, brass, plucks, keys, atmospheres and sound effects. About a quarter comes with the arpeggiator already on. Save your own in 32 user slots.

Arpeggiator and sequencer
One tap on ARP turns it on and off; holding it sets HOLD. The sequencer records up to 16 notes (REC) and plays them (PLAY). The key LEDs light with the notes.

Effects per preset
Reverb, delay, chorus and drive, each preset with its own combination, so basses, leads and pads live in very different spaces."
