MATRIXSYNTH: Roland TR 909 replica NAVA 909

Monday, February 05, 2018

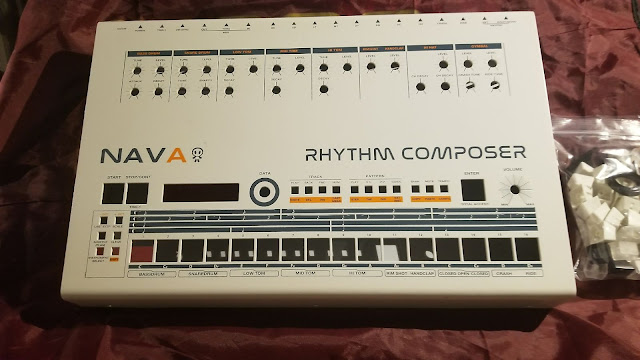

Roland TR 909 replica NAVA 909


Nava 909 Demo Published on Jul 27, 2016 Peter Kädergård


via this auction

Some details via the listing:

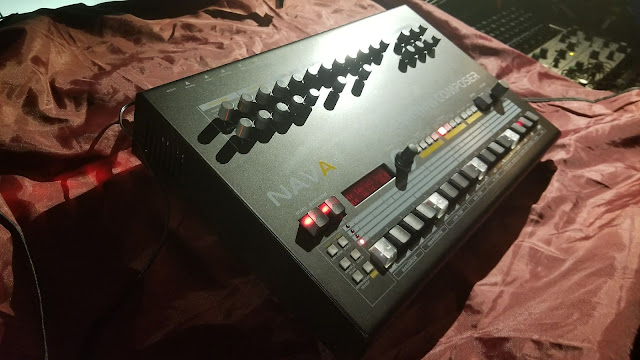

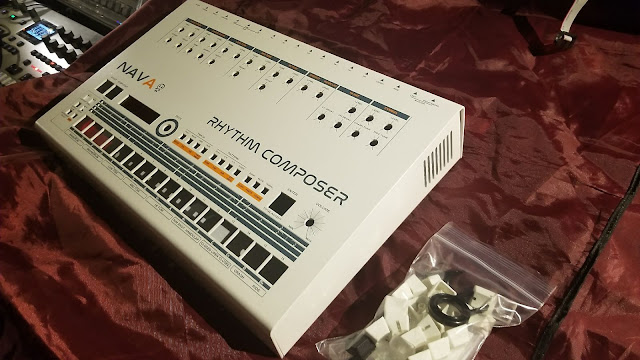

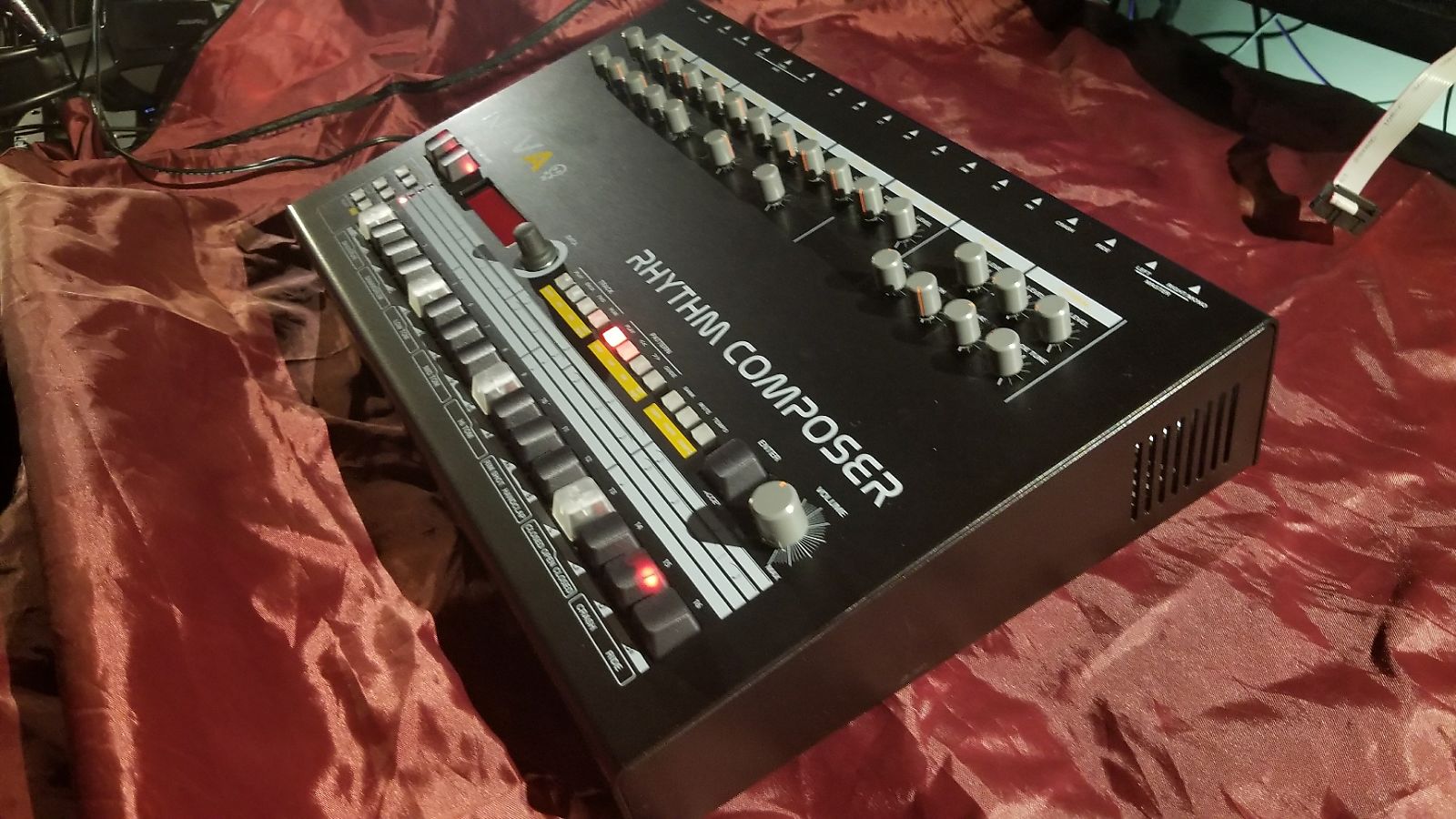

"3 months old Black nava, build by a professional in France, calibrated and ready to go, I will also include a custom made black case fabricated by Erica Synths as well as the white case, replica 909 style knobs, white and black transparent keys to be able to switch the look of it when ever you like.

The NAVA 909 is the only real clone of the Roland TR-909 who reproduce perfectly the sound of the original drummachine, even the sequencer has the same groove, the shuffle parameter is fully implemented. It got an midi interface, Roland Dyn Sync, trigger out, just like the original model.

It replicates so well the sound to the point that it is no more a clone, but an exact replica!

The circuits are 100% analogic and identical to the TR-909 from Roland.

It contains the exact same ROM samples (Ride, Crash Cymbals and hihats).

It sounds and feels like a Roland TR-909, but its even better as all the components are new, where the old real TR-909 has most of its components that are tired and often leading to sound problems.

On the top of that, it has an LCD screen and comes with an upgreadable firmware.

PSU:
Unlike the original TR-909, the NAVA got an 15V 1000MA external PSU, making it much more easy to replace in case of psu failure and you can easily get a 110V/60Hz or 220V/240V/50Hz in your nearest generalist electronic shop, they are very cheap, and available anywhere in the world.

© 2017 e-licktronics

NAVA 909 Specs:
128 Rhythm patterns from 1 to 16 steps
All the sounds generated from from the original Roland TR909 analog synth: BD, SD, LT, MT, HT, RS, HC & CH
16 tracks of 999 measures
1 external instrument track by pattern that can store 99 notes like SH101 sequencer style.
A Midi keyboard mode allow you to play external Midi device
Multi out for each instruments
Individual accent for BD, SD, LT, MT, HT, RS, HC and CH
A total accent track
Master out (L/R Mono) 6Vp-p 1Kohm
tempo 30 - 250 Bpm
7 shuffle levels
4 scales (1/8t, 1/16, 1/16t and 1/32)
4 sequencer directions (forward, backward, ping-pong and random)
Easy copy and paste pattern function
Shift left or right the entire pattern or individual instrument
In/Out/Thru Midi
DinSync 24ppqn Out
Trig Out 2ms +5V
And More...

The purchase will include
1 x NAVA 909
1 x NAVA 900 white case (slight bend on outer case)
1 x set of 909 replica knobs
1 x set of white 909 keys
1 x 15V 1000MA PSU
1 x ulgrade to 1.4 board
1 x mushboard to be able to upgrade to the latest firmware (will need to buy electronic components and will need to be installed by a professional) follow the link tonsee ulgrade procedure"
