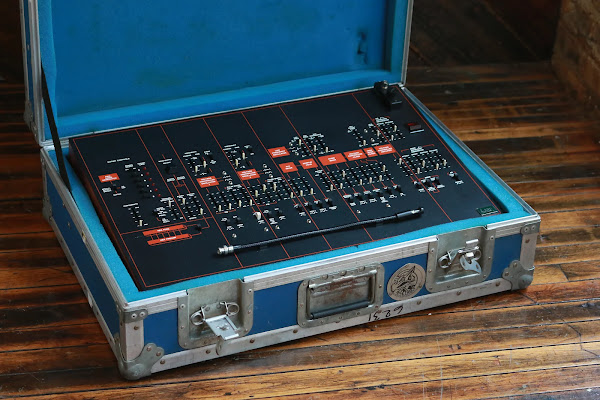

ARP Avatar Monophonic Analog Synthesizer (Modified) w/ Road Case

Note: Auction links are affiliate links for which the site may be compensated.

via this Reverb listing

Additional SYNTH CITY Listings

"1970s ARP Avatar synthesizer. This particular unit was just overhauled in-house and converted to an Odyssey module (no longer a guitar synth) with modifications. Ready for patching and serious studio-use! Please read..."

Service notes:

-Replaced filter capacitors and all tantalum capacitors on +/- voltage rails
-Replaced tantalum capacitors on VCF module (4075)
-Disassembled all faders, cleaned and lubricated, replaced (5) damaged carbon strips
-Cleaned and calibrated

MODIFICATIONS:
1/8" (8) CV outputs for- VCO1 Ramp,VCO1 SQ, VCO2 Ramp, VCO2 SQ, LFO SINE, LFO SQ. ADSR. AR
1/8" (6) CV inputs for- VCO1 FM, VCO1 PWM, VCO2 FM, VCO2 PWM, INPUT (mixer), VCF FREQ
Gooseneck Lamp

***Guitar section non-functional; bad frequency to voltage converter module "E".
Still contains all the PCBs and parts for future restoration!"
