MATRIXSYNTH: HyperSynth Intros Memory Expansion Cards for Yamaha DX-7, DX7-II, DX5 - DX1, Roland D-50


Tuesday, January 08, 2019

HyperSynth Intros Memory Expansion Cards for Yamaha DX-7, DX7-II, DX5 - DX1, Roland D-50





Additional details further below.

Hcard-701 (Yamaha DX7 MKI) €91/$104 - holds up to 100 banks (3200 presets)
Hcard-702 (Yamaha DX7II-D/FD) €91/$104 - holds up to 100 banks (6400 presets)
Hcard-750 (Roland D-50) €95/$109 - holds up to 64 banks (6400 presets)

Coming in the pipeline:

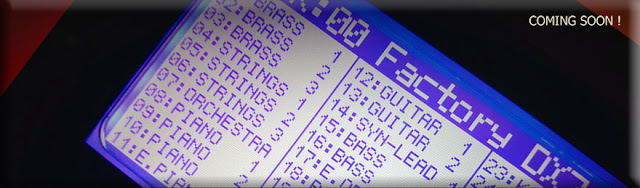

Hcard-705 Pair (Yamaha DX5-DX1) & H-Display (For All Hcard Series)







Additional details on the current cards:

Hypersynth multibank cartridge "Hcard-701"

Hypersynth multibank cartridge "Hcard-701" is specially designed for expanding the memory of Yamaha DX7 synthesizer. DX7 voice memory is limited to 32 presets (1 bank), which could be upgraded to 64 presets by adding an external Yamaha "Data RAM" cartridge. "Data RAM" is discontinued, rare, expensive and It relies on battery for data retention. These flaws make it not a good choice for DX lovers in modern age. "Hcard-701" can be used as a drop in replacement for Yamaha "DATA RAM" cartridge. it stores up to 100 banks without the worry of battery life and data loss.

Features:

-Memory size: Up to 100 banks (3200 presets).
-Instant access to different banks using touch buttons.
-Two digits bank indicator display.
-No need for battery.
-Drop in replacement for Yamaha "data RAM" and "Voice ROM" cartridge.
-Up to 24 pre-programmed soundbanks.
-Hidden "Memory Protect" option.
-External display support for listing all 32 presets in selected bank.

Categorized SoundBank:

"Hcard-701" comes with default DX7 factory soundbanks, plus 16 soundbanks which selected carefully out of thousands available free banks for DX7. These sounds banks are categorized in a way to simplify the workflow of sound selection."

-----

Hypersynth multibank cartridge "Hcard-702"

Hypersynth multibank cartridge "Hcard-702" is specially designed for expanding the memory of Yamaha DX7II synthesizer. DX7II voice memory is limited to 64 presets (1 bank), which could be upgraded to 128 presets by adding an external Yamaha "RAM4" cartridge. "RAM4" is discontinued, rare, expensive and It relies on battery for data retention. These flaws make it not a good choice for DX lovers in modern age. "Hcard-702" can be used as a drop in replacement for Yamaha "RAM4" cartridge, it stores up to 100 banks without the worry of battery life and data loss.

Features:

-Memory size: Up to 100 banks (6400 presets).
-Instant access to different banks using touch buttons.
-Two digits bank indicator display.
-No need for battery.
-Drop in replacement for Yamaha "RAM4" and "DATA ROM" cartridge.
-Up to 18 pre-programmed soundbanks.
-Hidden "Memory Protect" option.
-External display support for listing all 64 presets in selected bank.

-----

Hypersynth multibank cartridge "Hcard-750"

Hypersynth multibank cartridge "Hcard-750" is specially designed for expanding the memory of Roland D-50 synthesizer. D-50 voice memory is limited to 64 presets (1 bank), which could be upgraded to 128 presets by adding an external "M-256" memory card. "M-256" card is discontinued, rare, expensive and It relies on battery for data retention. These flaws make it not a good choice for D-50 lovers in modern age. "Hcard-750" can be used as a drop in replacement for Roland "M-256" card, it stores up to 64 banks without the worry of battery life and data loss.

Categorized SoundBank:

"Hcard-702" comes with default DX7II factory soundbanks plus 16 soundbanks which selected carefully out of thousands available free banks for DX7. These sounds banks are categorized in a way to simplify the workflow of sound selection.


Features:

-Memory size: Up to 64 banks (6400 presets).
-Instant access to different banks using touch buttons.
-Two digits bank indicator display.
-No need for battery.
-Drop in replacement for Roland "M-256" and "DATA ROM" card.
-Hidden "Memory Protect" option.
-External display support for listing all 64 presets in selected bank.

-----

Soundbanks on the DX Hcard-750 & :

"Hcard-750" comes with default D-50 factory soundbank, plus 63 formatted banks which are filled with default preset.

-----

Preset listing for the Yamaha Hcard-701 & Hcard-702 Hcard-702:

Hcard-701 (Yamaha DX7 MKI)

Soundbank Description (1 bank = 32 presets) Soundbank Description (1 bank = 32 presets)
00-Factory 1A Master Group (Japanese Version) 12-Organ Set Collection of organ sounds
01-Factory 1B Keyboard & Plucked Group 13-Guitar set Collection of acoustic and electric guitar sounds
02-Factory 2A Orchestral & Percussive Group 14-String set Collection of string sounds
03-Factory 2B Synth, Complex & Effects Group 15-Moog set Collection of Moog synth emulation
04-Factory 3A Master Group (American Version) 16-Waldorf Set Collection of Waldorft synth emulation
05-Factory 3B Keyboard & Plucked Group 17-Analog Vintage Collection of analog sounds
06-Factory 4A Orchestral & Percussive Group 18-Synth Brass Collection of brass sounds
07-Factory 4B Synth, Complex & Effects Group 19-Synth Pad 1 Collection of electronic pad sounds
08-Bells Set 1 Collection of bell sounds 20-Synth Pad 2 Collection of electronic pad sounds
09-Bells Set 2 Collection of bell sounds 21-Marimba Set Collection of marimba sounds
10-Bass Set Collection of electronic/acoustic bass sounds 22-E-Piano Collection Collection of E-Piano sounds
11-Harp Set Collection of Harp sounds 23-Fender Rhodes Collection of Fender Rhodes sounds


Hcard-702 (Yamaha DX7II-D/FD)

Soundbank Description (1 bank = 64 presets) Soundbank Description (1 bank = 64 presets)
00-Factory 1 DX7II Factory Sound Bank 1 09-Moog/Waldorf Collection of Moog and Waldorf synth emulation
01-Factrory 2 DX7II Factory Sound Bank 2 10-Analog Vintage 1 Collection of analog sounds
02-Bells Set Collection of bell sounds 11-Analog Vintage 2 Collection of analog sounds
03-Bass Set 1 Collection of electronic and acoustic bass sounds 12-Synth Brass Collection of brass sounds
04-Bass Set 2 Collection of electronic and acoustic bass sounds 13-Synth Pad 1 Collection of pad sounds
05-Harp Set Collection of Harp sounds 14-Synth Pad 2 Collection of pad sounds
06-Organ Set Collection of organ sounds 15-Marimba and Mallet Collection of marimba sounds
07-Guitar set Collection of acoustic and electric guitar sounds 16-E-Piano Collection Collection of E-Piano sounds
08-String set Collection of string sounds 17-Fender Rhodes Collection of Fender Rhodes Piano sounds

via HyperSynth
