Ghost In Translation SimpleSynth FM AM RING Teensy Based Eurorack Module


Published on Dec 16, 2019 Ghost In Translation

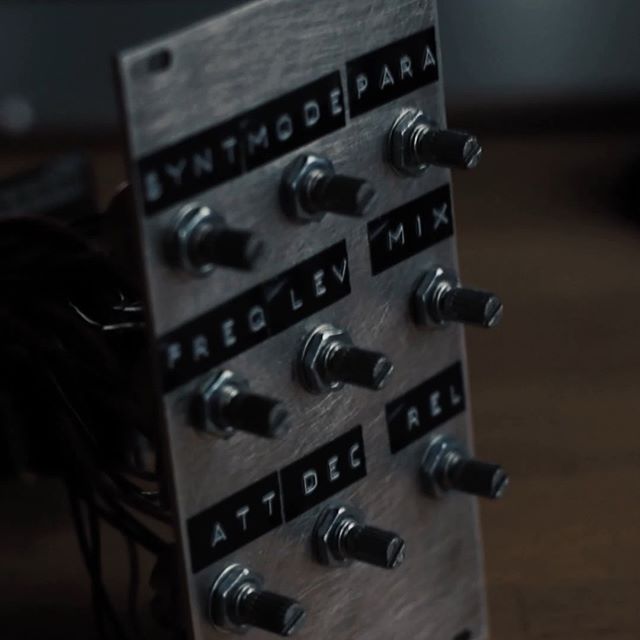

"I finally 'finished' my custom synth SimpleSynth.

SimpleSynth is a Teensy based synth with the main objective to keep it simple (code wise and hardware wise).

Timestamps at the bottom!

In this demo I was sending MIDI notes via USB to the synth and I recorded the audio raw coming also through USB.

Features
- FM, AM and Ring synthesis with 1 carier and 1 modulator
- Polyphonic synth, Arpeggiator and Drone modes
- Controllable modulator gain and frequency
- Controllable Attack, Decay, Release
- MIDI over USB
- MIDI through the Hobbytronics USB Host Board Controller
- Audio jack output
- Audio over USB

I used a Teensy 3.2 because Teensy 4.0 is not yet capable of all the USB possibilities and will be ready in a few months probably. So I will post an update when I test it with Teensy 4.0.

All the sources are on Github
https://github.com/ghostintranslation...

Stay in touch
Bandcamp - http://ghostintranslation.bandcamp.com/
Instagram - https://www.instagram.com/ghostintranslation/

Timestamps
00:10 Raw audio demo start
00:12 Release
00:32 Attack
00:48 Decay
01:13 Synth FM
01:15 Modulator amplitude
01:22 Modulator Frequency
02:35 Synth FM x10
03:50 Synth AM
04:20 Synth AM x10
04:55 Synth Ring
05:38 Arpeggiator
05:50 Arp Time
06:30 Drone
06:35 Drone Frequency
07:24 Drone with reverb
09:18 Weird Ambiant with reverb
10:08 Synth with reverb

Let me know what you think!"
