Unknown Devices Eisei | Basics 01 feat. ‪@erekutoronikku‬

video upload by Unknown Devices

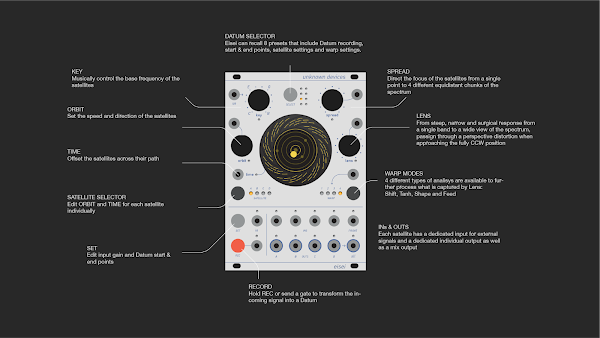

"Lorenzo ‪@erekutoronikku‬ walks us through the basic controls and functions of Eisei. Learn what it does, what each knob and button do."

See the announcement post here.

Unknown Devices Eisei - Quad satellite processor | Available for Preorder

video upload by Unknown Devices

Playlist:
1. Eisei - Quad Satellite Processor - Preorder Now!
2. Unknown Devices Eisei - Demo 01 [from one year ago]
3. Making music from space | Unknown Devices Eisei Devlog 01 [from one year ago]


via Unknown Devices

Eisei is our take on spectral processing and polyphonic voicing for eurorack format. It is packed with really unique features, focused on complex timbre shaping and entangled harmonic rhythms, knit upon a smart and playful orbit based UI.

Eisei can filter, process, harmonize, shape and resynthesize anything coming across. Its core are 4 satellites, each equipped with a 20 bands filterbank, a pulse wave oscillator and dedicated IN & OUT.

Eisei is up for preorder now.

For more info visit https://unwn.dev/shop/modules/eisei/

Preorder ends July 8th.

———
SPECS

Dimensions
height – 3U
width – 18HP
depth – 18mm

Connectivity
6x CV inputs
3x trig/gate inputs
3x audio inputs
1x REC input

4x audio outputs
1x audio sum out
i2c port

Features
Unique UI
Datum sampling™
8x spectral presets (datum)
4x 20 bands filterbanks
4x internal oscs
4x Warp modifiers
based on esp32 + daisy 2
127x127px monochrome OLED display
48khz 16bit audio

———

Company
Unknown Devices was founded by Ciro Caputo in 2020 and has ever since
released 2 eurorack modules Sawari (preamp/EF/eq/contact mic/drive) and
Raiju (Envelope/LPG + internal voice). UNWN puts its focus in developing
engaging UI and combining different features into innovative
instruments.

Unknow Devices Topo T16 | Expressive Midi Controller

video uploads by Unknow Devices

Playlist:

1. Introducing Topo T16 | Expressive Midi Controller
2. Topo T16 Demo | ‪@AShamisenOrchestra‬

"Featuring 16 pressure-sensitive keys, a touch-sensitive strip, and customizable play modes, the Topo T16 transforms your every keystroke into dynamic, nuanced MIDI data. Tailor the response curves, personalize the layout, and dive deep with the web-based configurator to make this controller your own.

Whether you're playing, mixing, or exploring new sonic territories, the Topo T16 is the perfect companion to elevate your creativity.

Key Features:
-16 pressure-sensitive keys with velocity and aftertouch
-Touch-sensitive strip for pitch bend, octave, mod, and bank control
-Keyboard, Joystick (XY Pad), and Fader playback modes
-Customizable key layout, scale, and root note
-Web-based configurator for deep customization
-USB-C connectivity, MIDI TRS output"

Note these videos are from one year ago. The T16 no longer appears to be available. https://unwn.dev/shop/midi-controllers/topo-t16/

Unknown Devices Raiju

video uploads by Unknown Devices

Playlist:

1. Unknown Devices Raiju - Early Access Launch
2. Unknown Devices Raiju - Sine modulator demo
3. Unknown Devices Raiju - Self-triggering - demo #001
4. Unknown Devices Raiju - Tone - demo #002 "Raiju is a compact 8HP percussive synth module, with a powerful engine under the hood:
-Analog LPG
-Digital Complex Oscillator
-ADSR Envelope generator.

the music in the video has been recorded straight out of the system, no additional EQ-ing or limiting was applied."

Note these videos are from 2 years ago.

Unknown Devices - Sawari

video uploads by Unknown Devices

Playlist:

1. Unknown Devices - Sawari (lauch video)
2. Unknown Devices - Sawari demo #1 - Shamisen
3. Unknown Devices - Sawari demo #2 - PRS Custom 24
4. Unknown Devices - Sawari patch by Erekutoronikku #1 - Hardclipping
5. Unknown Devices - Sawari patch by Erekutoronikku #2 - Dynamics

A Eurorack Instrument preamp

Envelope Follower
3-band EQ
internal microphone

8HP | +/-12V 35mA

Previously available at: https:/unwn.dev

Note these videos are from three years ago.

Unknown Devices Ogami Ittō

video uploads by Unknown Devices

Playlist:

1. Unknown Devices Ogami Ittō | Feeedback/saturation patch
2. Unknown Devices Ogami Ittō | Delay patch
3. Unknown Devices Ogami Ittō | Delay patch 2

Note these videos are from four years ago.
